SPECIFICATIONS

Angle of View: Horizontal: 60.7° ~ 2.28°, Vertical: 34.1° ~ 1.28°
Audio Compression: AAC
Audio Interface: 1x3.5mm Audio Interface,Line In
Brand Name: SMTAV
Control Signal Interface: 1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN), RJ45(IP Control)
Focus Mode: Auto, Manual
High Definition Support: 1080P (Full-HD)
High-concerned chemical: None
Inbox adaptor: Yes
Lens: 30x,f4.42mm~132.6mm,F1.8~F2.8
Local Storage: Support(Flash disk via USB, FAT32 format)

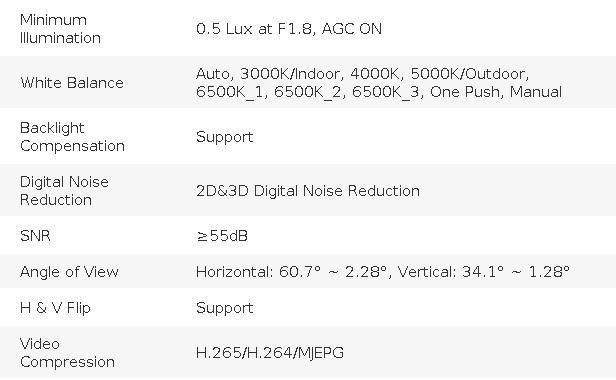

Minimum Illumination: 0.5 Lux at F1.8, AGC ON
NDI Support: NDI, NDI|HX, NDI|HX2, NDI PTZ
Origin: Mainland China
PoE: Support(802.3af)
Power Source: other

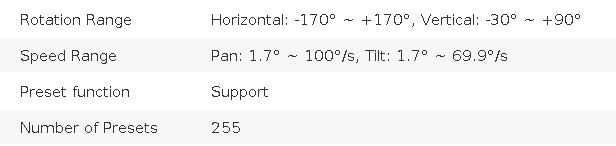

Rotation Range: Horizontal: -170° ~ +170°, Vertical: -30° ~ +90°
Sensor: 1/2.7'', CMOS, Effective Pixel: 2.07M
Sensor Size: 1/2.7 inches
Sensor Size (inches): 1/2.7

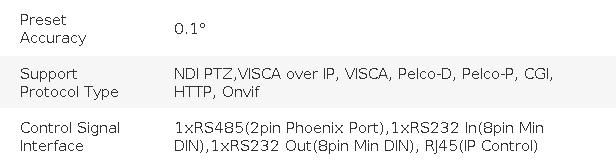

Support Protocol Type: NDI PTZ,VISCA over IP, VISCA, Pelco-D, Pelco-P, CGI, HTTP, Onvif
Supporting Language: English
Usage: Business
Use: Amateur Professional
Video Compression: H.265/H.264/MJEPG
Video Output Interface: 3G-SDI, HDMI, CVBS, IP(RJ45)
Video Transmission Protocol: other
name 1: IP CAMERA
name 10: NDI PTZ Camera
name 11: ptz camera poe
name 2: Video recorder
name 3: Video camera
name 4: streaming camera
name 5: camera zoom
name 6: live camera
name 7: BUSINESS camera
name 8: Video Conference Camera
name 9: ptz camera

NDI Camera Main Features
Professional NDI PTZ Camera,approved by Newtek Inc.With NDI Technology,Support power, audio, control and lower-latency video with only one Ethernet cable.Easy integration with industry popular video APP (including OBS, vMix, Livestream Studio,Wirecast and more).
Apply Panasonic's 1/2.7 inch CMOS sensor and TAMRON lens(Maximum Aperture F1.8) offers a wide 60.7 degree FOV and support 30x + 8x zoom.The High SNR of CMOS sensor and WDR, 2D&3D Digital noise reduction supports working in LOW illumination.Hold your streaming in low lighting with this ptz camera.
As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,NDI PTZ/CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.Compatible with Ptzoptics App.
Is a Full HD live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from NDI,3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support NDI, PoE(802.3af), RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
Flexible and easy-to-use installation options. LINE IN audio embeded simultaneous on NDI, HDMI and IP, powered by POE or the included power adapter, and can be installed on a wall bracket, ceiling bracket, or tripod bracket.
Camera package includes: camera, adapter, power cord, remote control, Visca control cable and instruction manual
BA30N is a new design professional NDI PTZ Camera.It has 30X + 8X Zoom and 60.7 degree FOV with Panasonic's 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens.Large aperture of maximum F1.8 can get more light and achieve better background blur effects, especially close-up at the telephoto.
Supports NDI,3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.Support NDI, NDI|HX, NDI|HX2,TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Features of broadcast frame rates and NDI, create more artistic possibilities.So,it is a ideal use for Live Streaming,Conference,Church,Teaching,Esports,Fitness Classes and Cooking demonstrations and more.
